| Allmänt |

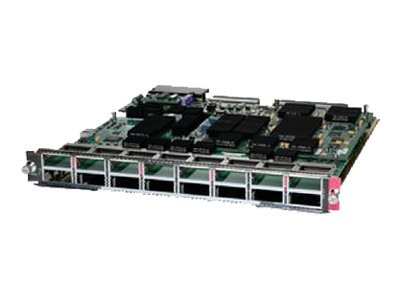

| Typ av enhet | Expansionsmodul - 16 portar |
| Formfaktor | Insticksmodul |
| Nätverk |
| Anslutningsteknik | Kabelansluten |
| Typ av kablage | Ethernet 10GBase-X |
| Datalänkprotokoll | 10 Gigabit Ethernet |
| Dataöverföringshastighet | 10 Gbps |
| Protokoll för administration på distans | RMON |
| Statusindikatorer | Portstatus, status |
| Standarder som följs | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak |
| Expansion/Anslutning |
| Expansionskortplatser | 16 (totalt)/ 16 (ledig) x X2 |
| Kompatibla kortplatser | 1 x expansionskortplats |
| Diverse |
| Standarder som följs | FCC klass A-certifierad, CISPR 22 klass A, EN 60950, VCCI klass A ITE, IEC 60950, EN55024, EN55022 klass A, UL 60950, CSA 22.2 No. 60950, FCC CFR47 Part 15 |
| Dimensioner och vikt |
| Bredd | 35.6 cm |
| Djup | 40.6 cm |
| Höjd | 3 cm |
| Vikt | 5.6 kg |
| Miljöparametrar |
| Min temperatur vid drift | 0 °C |
| Max temperatur vid drift | 40 °C |
| Luftfuktighet vid drift | 10 - 90% |
| Kompatibilitetsinformation |
| Designat för | Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506, 6506 chassis, 6506 Firewall Security System, 6506 Firewall Security System with Enhanced Chassis, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509, 6509 chassis, 6509 Firewall and IDS Security System, 6509 Firewall and VPN Security System, 6509 Wiring Closet Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with WiSM Bundle, 6509-NEB, 6509-NEB-A, 6509-V-E, 6513, 6513 10Gig Firewall Security System Bundle, 6513 chassis, 6513 Chassis with Supervisor Engine 32, 6513 Firewall Security System, 6513 IPSec VPN SPA Security System |
|
